Product Details
Broan Nutone ZB80M
The Broan® ZB80M ULTRA GREEN™ 80 CFM Motion Sensing Exhaust Bath Fan, ENERGY STAR® delivers everything you wished for in a bath fan – premium ventilation to help reduce airborne pollutants, ease of installation, energy efficiency, consistent power, extremely quiet operation and multi-speed capability. ULTRASense™, Motion Sensing Technology, offers a hands-free solution for maximum convenience. The fan will increase to maximum speed from the lower, continuous setting when motion is detected – which is ideal for family members who forget to turn the fan on – and will stay on the max setting for the user-set 5-minutes to 60-minutes period after no motion is detected, before falling back to the continuous setting.
- Finish White
- Collection ULTRA GREEN™ Series
- UPC 026715202898
- Online Product ID 525855
- Product Line Broan
- Length 13.13″
- Width 14.00″
- Height 7.63″
- Weight 12.00 lbs.
- Made In China
- Dimensions 15.72 x 13.75 x 8.625
- Mounting Ceiling
- Blades Polymeric
- Ceiling Fan Amps at High Speed 0.3
- Airflow 80
- ENERGY STAR yes
- Voltage 120v
- Listing UL
- Amperage Amps 0.3
- Automatic Shut Off yes
- Contain Electronic Equipment yes
- Cul Listed yes
- Culus Listed yes
- Frequency Hz 60
- Grille Shape Rectangle
- Hardware Included yes

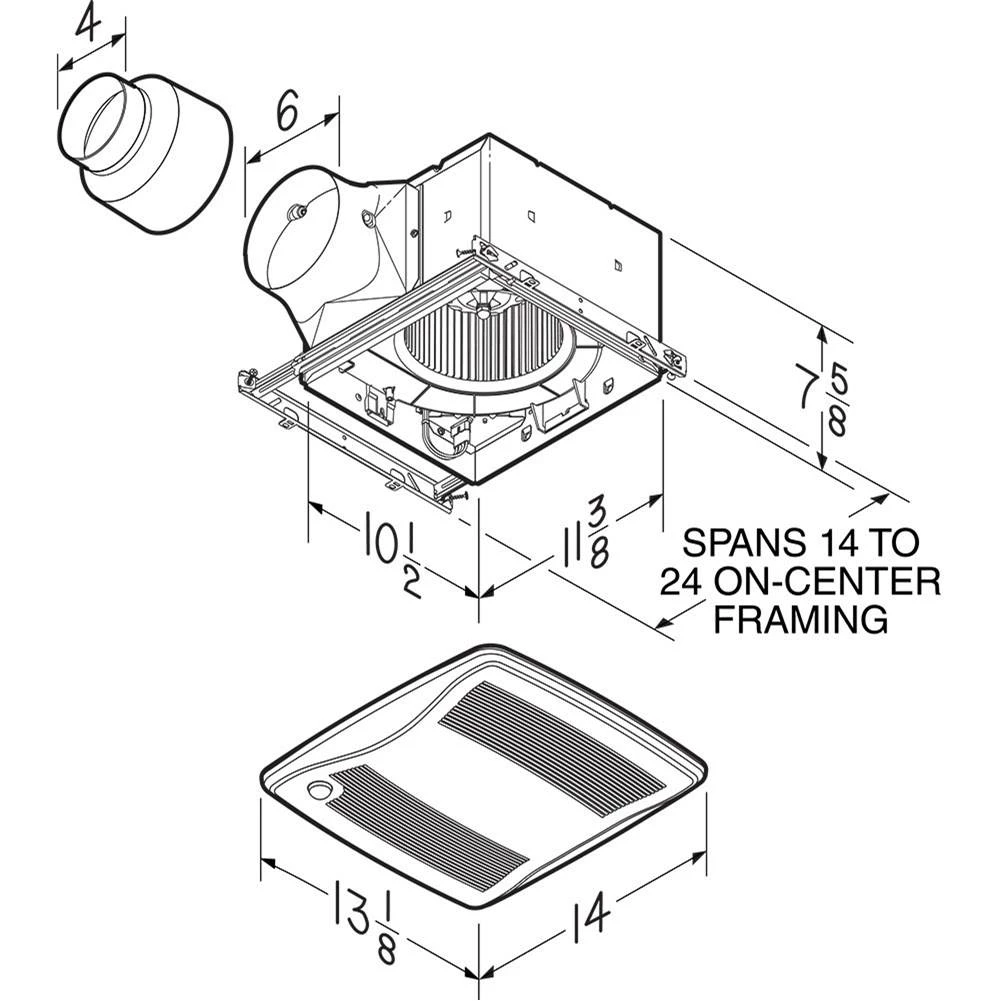

- Housing Height In 7.625
- Housing Length Depth In 10.5
- Housing Material Galvanized
- Housing Width In 11.375
- Hvi Certified yes
- Includes 6” to 4 ” Duct reducer
- Ul Listed yes
- Shipping L:14.80″x W:13.90″x H:11.50″ 12.60 lbs.
Additional information
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- Motion sensor automatically turns fan on when you enter the room and off when you leave
- ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
- Paintable white grilles blends in with any décor
- Mounting Frame fits any type of joist, I-Joist or truss construction for a ”no guesswork” installation to make the work fast and easy
- ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
- Title 24 compliant
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
- Powerful enough for rooms up to 75 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
