Product Details
Broan Nutone QTXEDCH

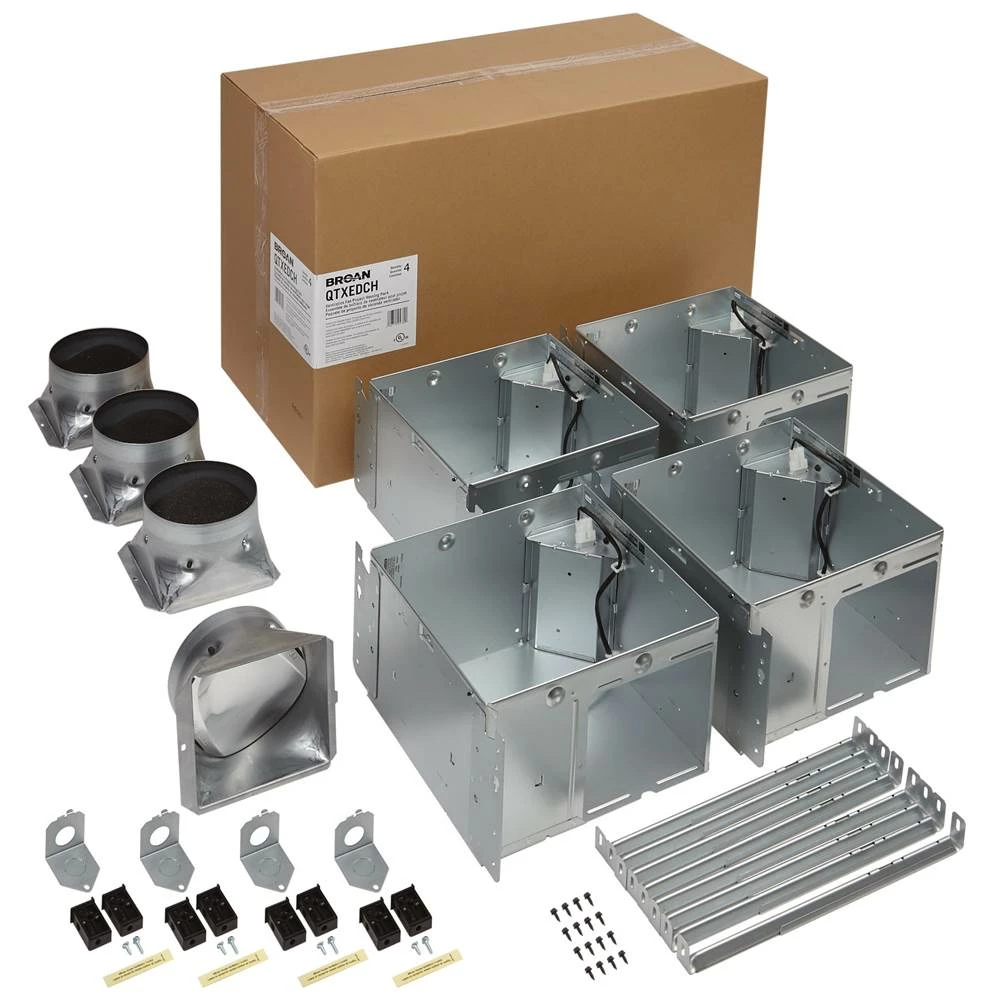

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The QT DC Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor. With selectable CFM of 110-130-150, and a quiet operation of
- Finish White
- Collection QT DC⢠Series
- UPC 026715257829
- Online Product ID 9323694
- Product Line Broan
- Length 13.00″
- Width 13.75″
- Height 7.63″
- Made In China
- ENERGY STAR yes
- Voltage 120v
- Listing UL
- Amperage Amps 0.5
- Cul Listed yes
- Culus Listed yes
- Frequency Hz 60
- Grille Shape Rectangle
- Hardware Included yes
- Housing Height In 7.625
- Housing Length Depth In 10.5
- Housing Material Galvanized
- Housing Width In 11.375
- Hvi Certified yes
- Ul Listed yes
Additional information
- Selectable CFM with speeds of 110-130-150
- Housing and finish packs sold separately
- Hanger bars to position housing anywhere on center joists
- Unique patented spacers for mounting to engineered ”I” joists
- ENERGY STARĀ® Certified
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
