Product Details
Broan Nutone AE80K

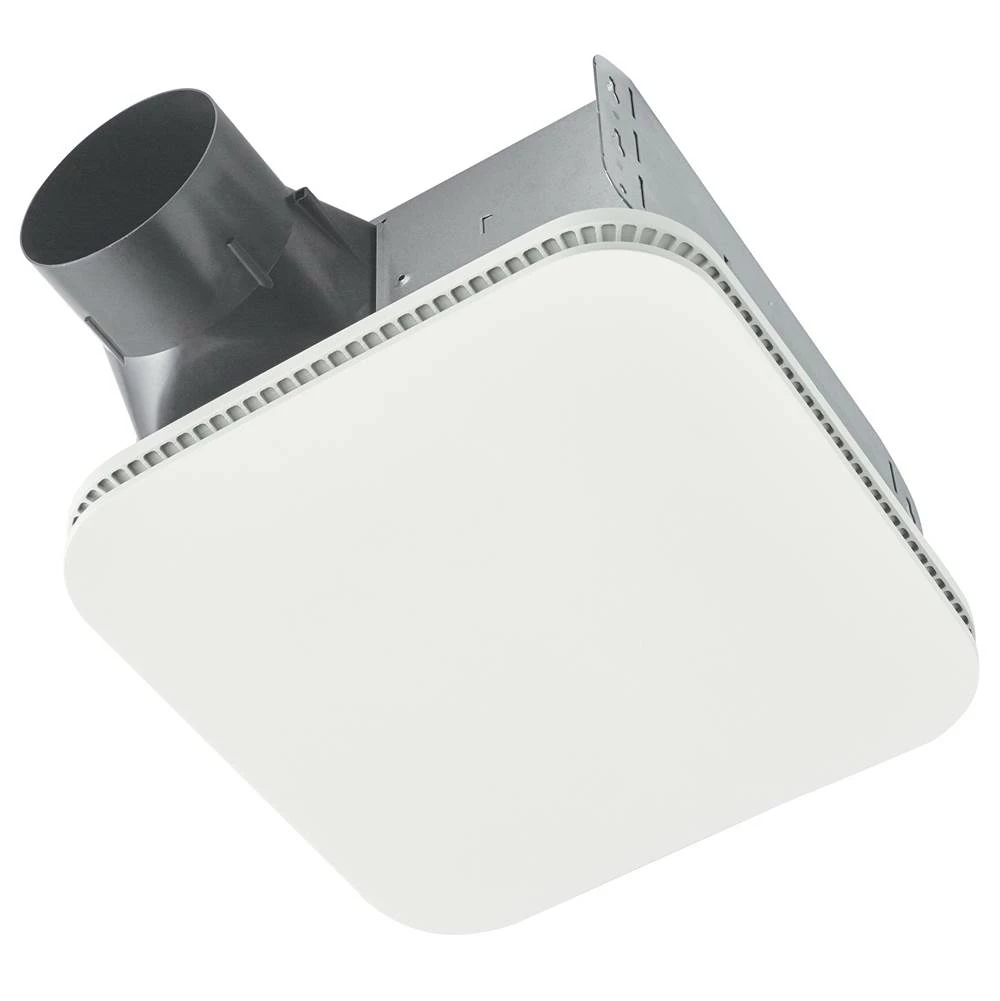

The Broan® Flex Series Ventilation fan with CleanCover™ grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover™, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor. Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct™ connector and FoldAway™ mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home. Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
- Finish White
- Collection Broan Flex™ Series
- UPC 026715260904
- Online Product ID 9323546
- Product Line Broan
- Length 12.25″
- Width 12.25″
- Height 5.75″
- Weight 9.00 lbs.
- Made In United States of America
- ENERGY STAR yes
- Voltage 120v
- Warranty 3 Year Limited
- Listing UL
- Amperage Amps 0.3
- Contain Electronic Equipment yes
- Cul Listed yes
- Culus Listed yes
- Frequency Hz 60
- Grille Shape Square
- Hardware Included yes
- Housing Height In 5.75
- Housing Length Depth In 9.25
- Housing Material Galvanized
- Housing Width In 10
- Hvi Certified yes
- Includes Non-metallic damper/duct connector
- Ul Listed yes
- Shipping L:13.30″x W:11.00″x H:13.30″ 9.00 lbs.
Additional information
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

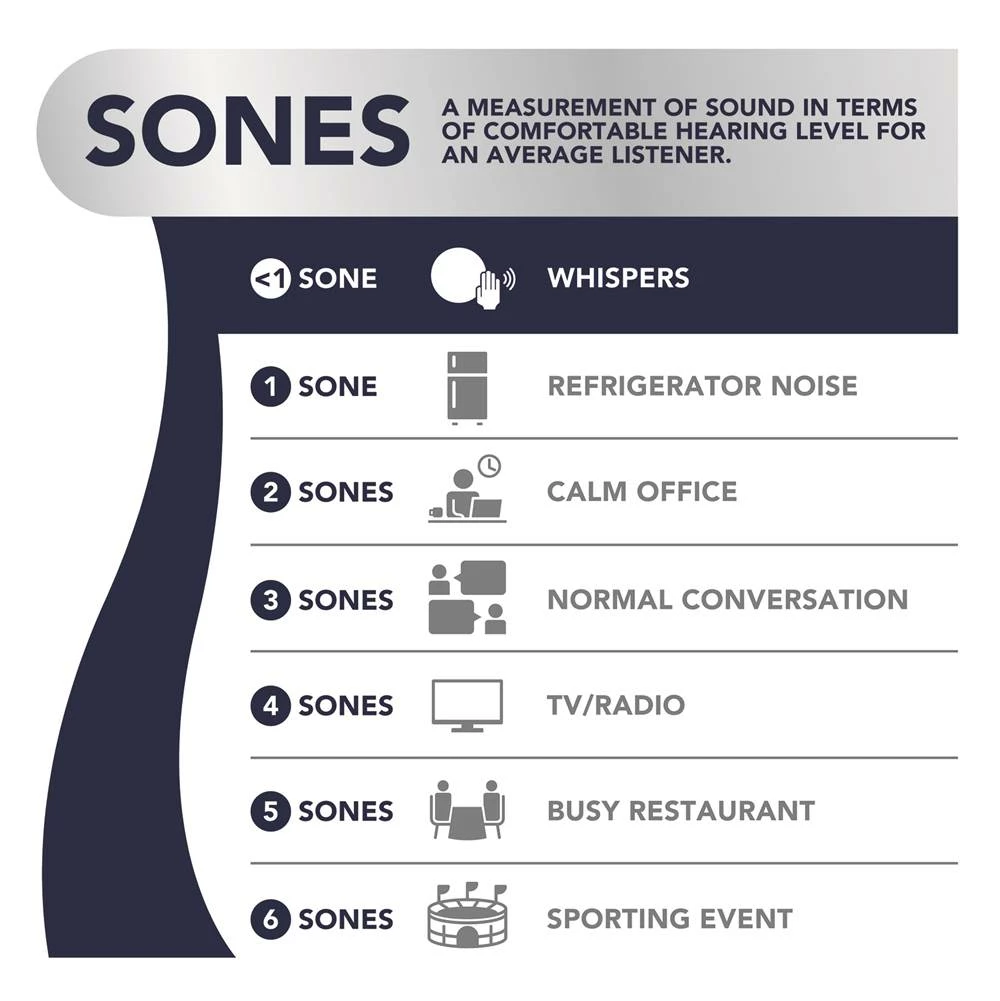

- 0.7 Sone for whisper quiet operation
- Broan® Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

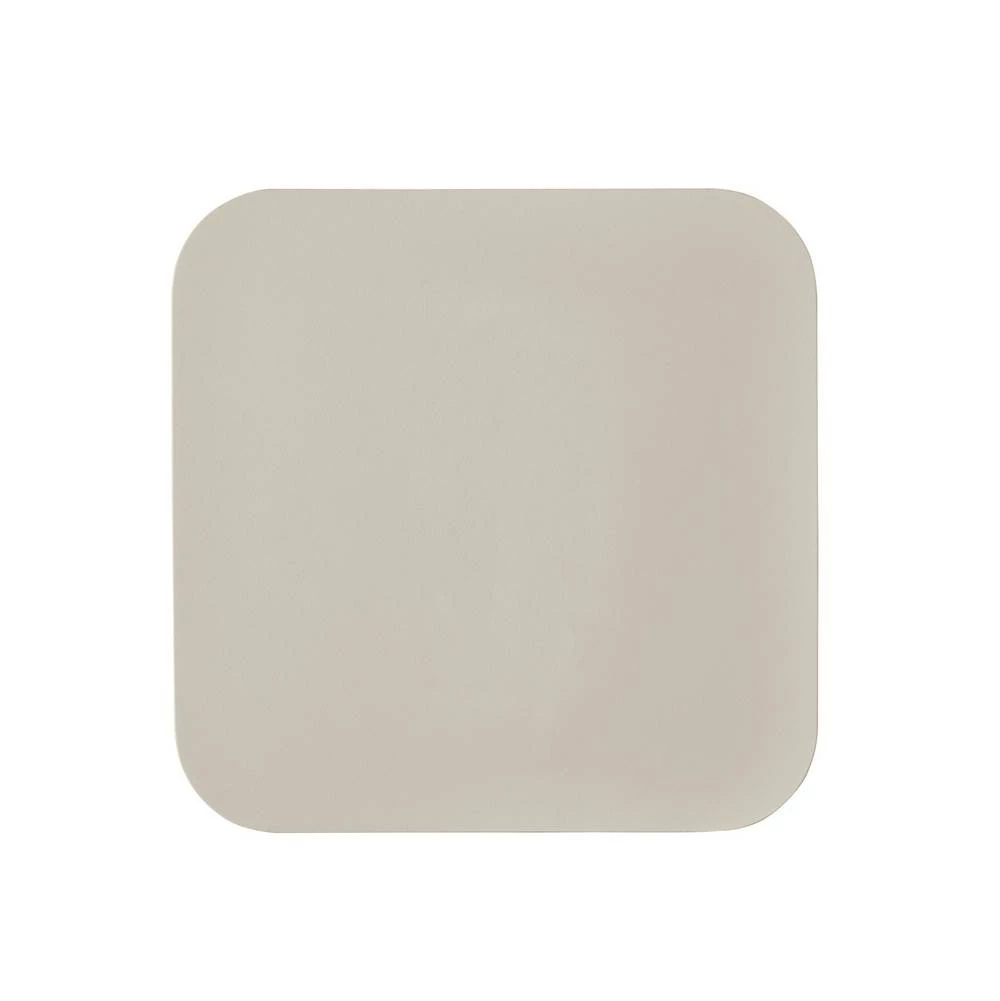

- CleanCover™ grille stays cleaner longer with fewer vent slots to collect dust
- FoldAway™ mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- 50 Percent more airtight installed performance vs standard ventilation fans
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR® certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- 3-year limited warranty
